HYDRO VACUUM

EXCAVATION TRUCK

10000L JETTER COMBO UNITS

View Specifications

AUSTRALIAN OWNED AND MANUFACTURED

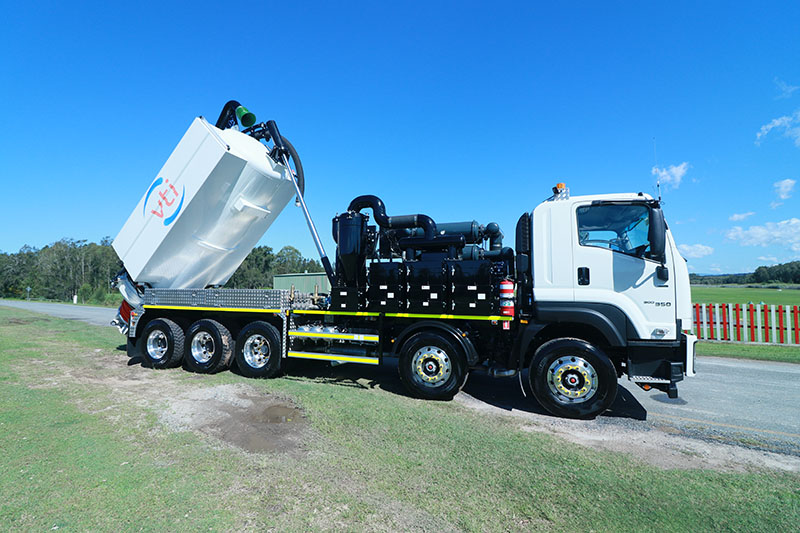

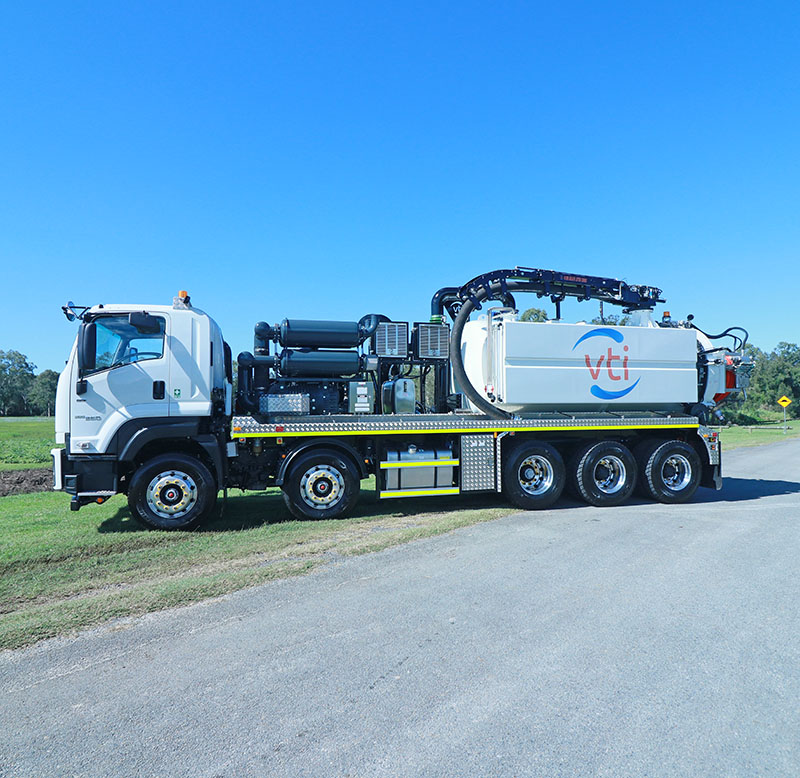

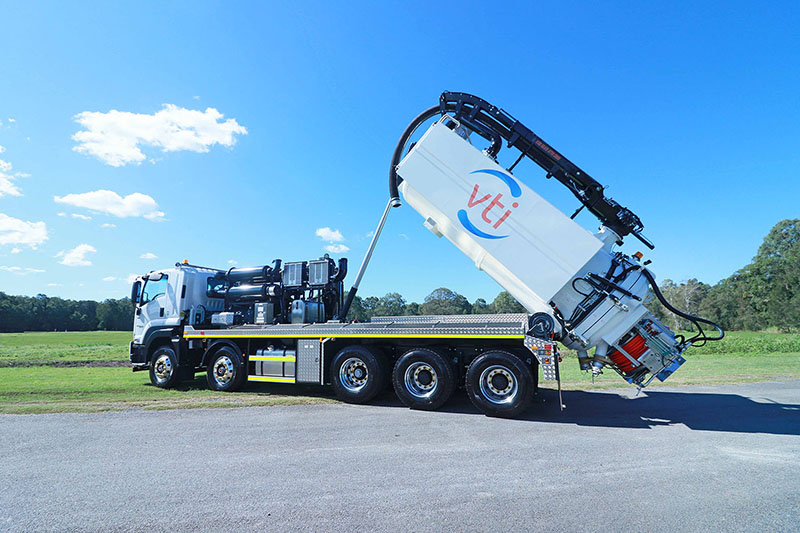

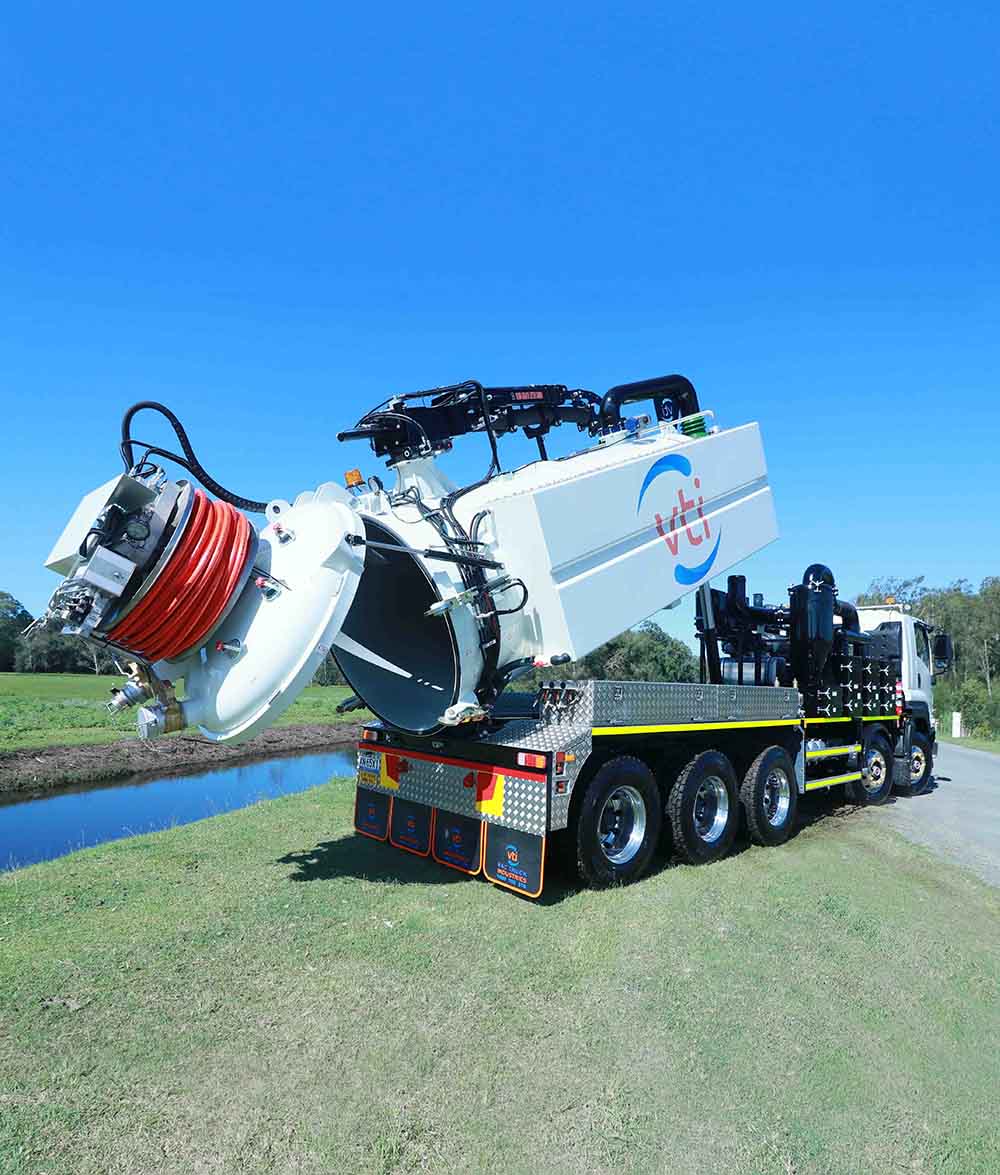

10000L JETTER COMBO
HYDRO EXCAVATION TRUCK

SETTING A NEW BENCHMARK FOR INNOVATIVE TECHNOLOGIES WITHIN THE HYDRO VAC INDUSTRY

The largest in VTIs Hydro Vacuum Excavation Truck range, the 10000L Jetter Combo Unit, sets a new benchmark in performance, reliability, flexibility and profitability. This unit has been designed and built to outlast and outperform the operational demands of the construction, civil, electrical, infrastructure, mining, drilling, oil, and gas industries.

Allowing for more time on-site and less time to travelling to dispose of waste, this unit was built to deliver faster results, shorter lead times and deliver a higher return on investment for your business. With the addition of the Jetter Combo, you can high pressure flush, clear and clean drains and pipes removing from site any collected debris, roots, obstructions and water with high volume vacuum extraction.

Spoil Tank And Blower

10,000L spoil tank capacity (10mm thickness) – designed and certified to AS1210 – Class C
Jurop style locking system for spoil tank door
Goliath series – Jurop Helix 1200, high mercury, air injected – 3770cfm (28′ Hg)
Butterfly travel and relief valves fitted for safety and compliance
Day (high) and night (low) option for blower operation

WATER TANK AND SYSTEM

4000L capacity – water tanks combined
Water tanks baffled for safety and stability
2″ stainless steel water fill system with isolation taps
Water level sight indicators on both tanks
Comet TW8036 water pump – 32l/m at 3600psi
Heavy-duty hose reel complete with 25m 3/8 high-pressure water hose with quick release fittings (dual hose reels and pump options available)
Lances – 1500mm, 2100mm and flexi (0.90 Suttner nozzles) Jetter
267l/m jetter water pump – (2300 psi) pump with pressure relief and safety valves
Jurop hydraulic swiveling stainless steel jetter hose reel mounted on rear door with 150 of 1’’ jetter hose

GENERAL

VTI full-length passenger side aluminum hose tray storage – with tie-down points and straps for load containment
Unique VTI driver side storage box for tooling and equipment with integrated 3 lance holder box
Side intrusion bars with high visibility reflective tape
Starter and battery isolation switches with lockout facility
Emergency stops fitted in a key position on the tray
LED rotating lights and work lights fitted to the truck and spoil tank
Interlocks and warning alarms fitted to park brake, spoil tank, and boom
20m x 4” polyurethane vacuum hose with fittings of choice
9kg fire extinguisher with mounting bracket and notification decal
Full mine site compliant safety decals
Easy to clean baghouse and cyclone setup, accessible from the ground
Angled base on cyclone and baghouse for easy washout
