HYDRO VACUUM

EXCAVATION TRUCK

3000L –  1100 ADROIT / 1500 HERCULES

AUSTRALIAN OWNED AND MANUFACTURED

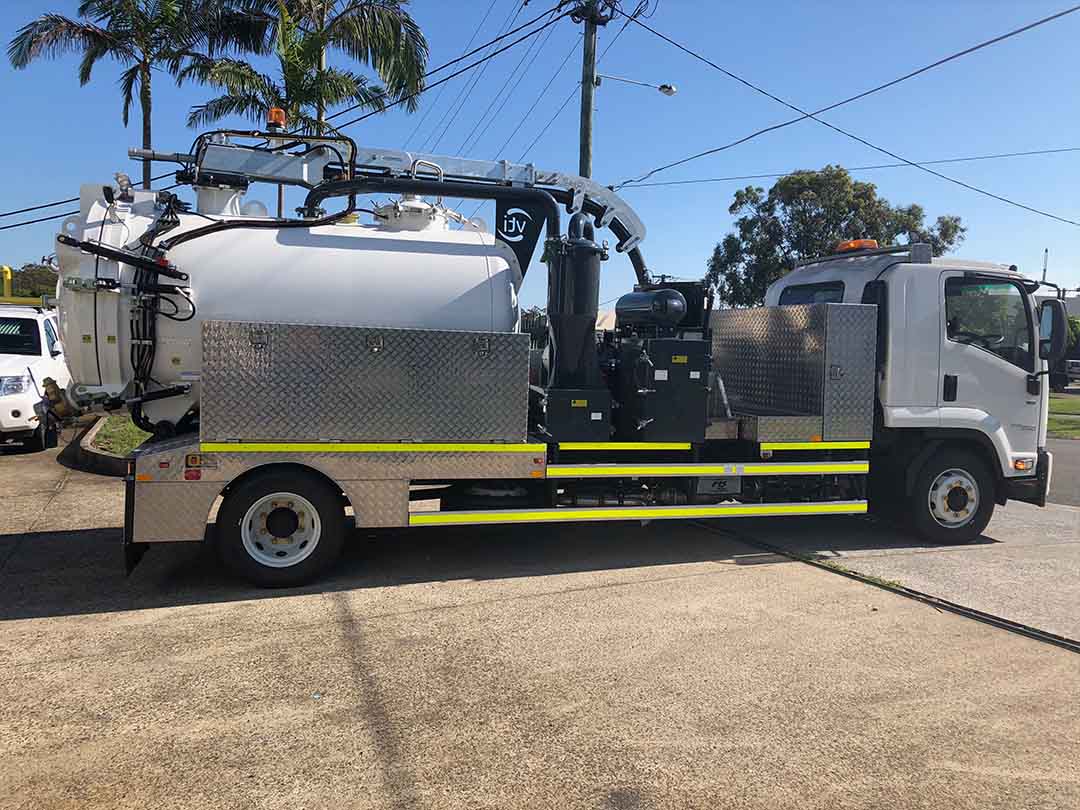

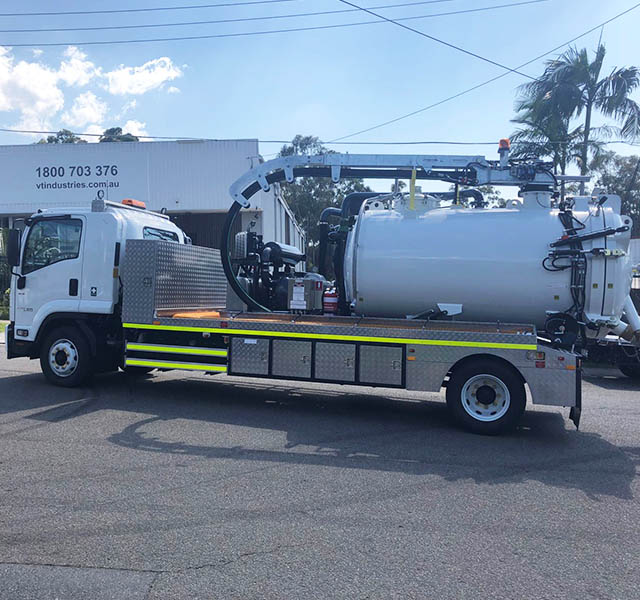

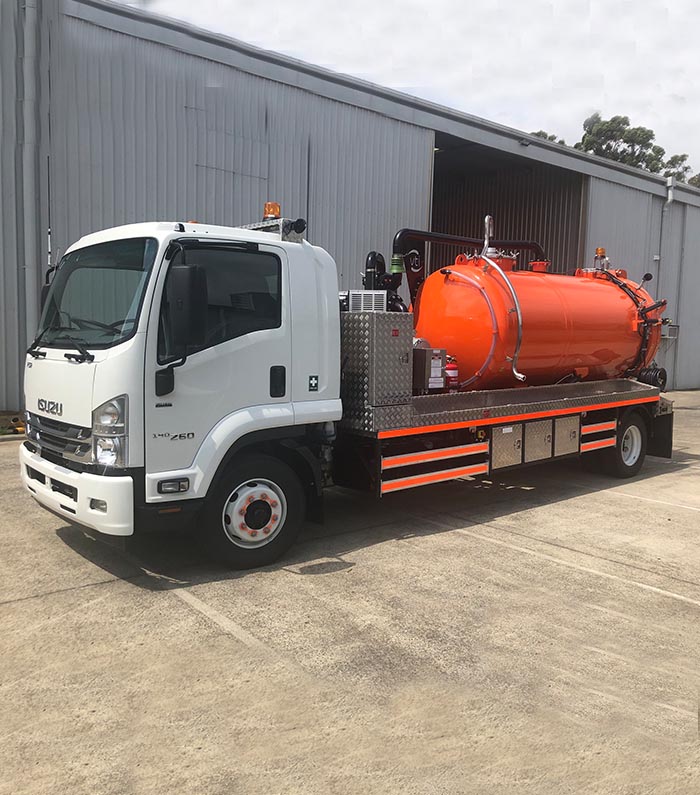

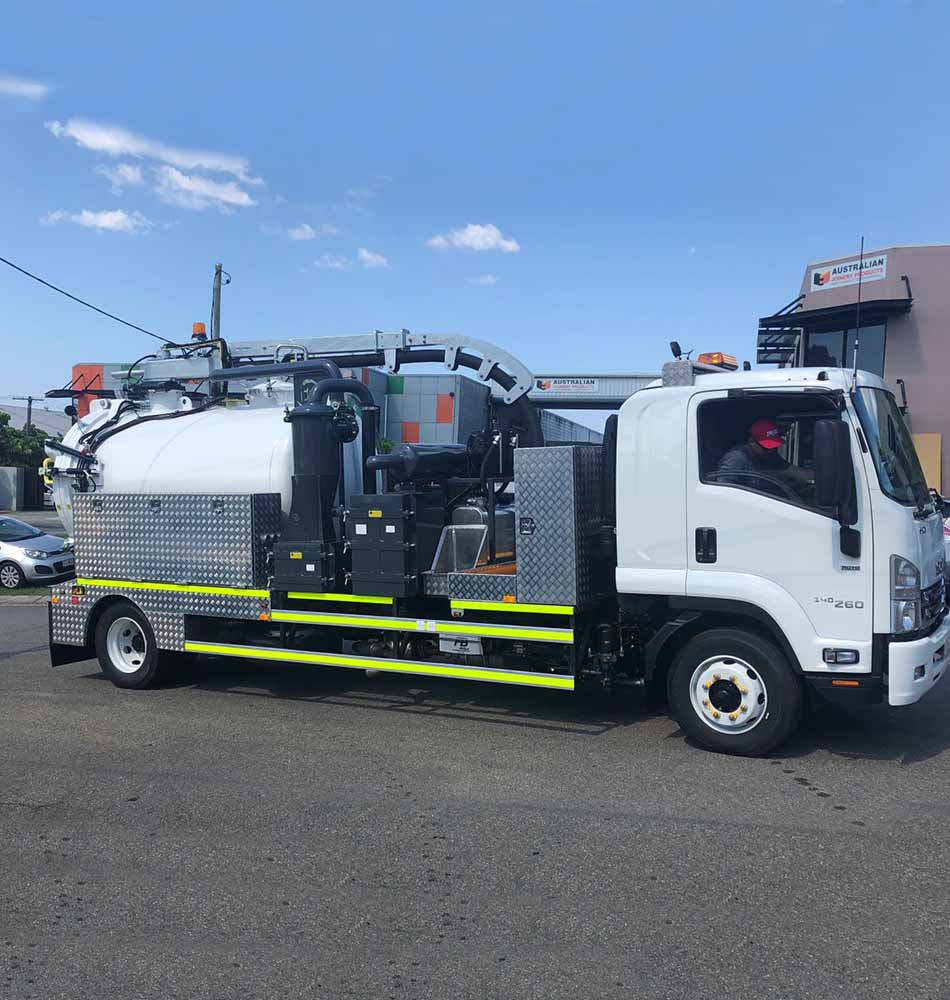

3000L – 1100 ADROIT / 1500 HERCULES
HYDRO EXCAVATION TRUCK

The smallest vacuum excavation truck in the VTI range – But don’t let size fool you – TINY but MIGHTY when it matters!!

The compact footprint of the 3,000L enables this powerhouse to get into tight access area’s that the bigger trucks can’t.

Purpose designed and built for non-destructive digging, drill mud recovery, underground services location and daylighting. Recover of wet and solid materials, liquids and slurries.

Used for:

  • Bulk non-destructive digging / hydro excavations
  • Drill mud recovery
  • Underground services location and daylighting
  • Recovery of wet and solid materials, liquids and slurries
  • Bulk excavation

Spoil Tank And Blower

  • 3000L Spoil tank capacity (8mm thickness) – designed and manufactured and certified to AS1210
  • Jurop style locking system for spoil tank door
  • Jurop CT 180 – 1100cfm (14” Hg @ 50%)
  • Jurop pneumatic 4 way valve – vacuum & pressure

WATER TANK AND SYSTEM

  • 2000L capacity water tank position at front of spoil tank
  • 2” stainless steel water fill system
  • Water Level sight indicator
  • Manway access to water tank
  • Comet RWS6040 water pump – 21l/m at 4000psi
  • 25m 3/8 high pressure water hose with quick release fittings
  • Lances – 1500mm, 2100mm and flexi (0.55 PA nozzles)

GENERAL

  • Full length aluminium trays ”VTI unique hose storage” Accommodate up to 30m of 4” suction hose
  • Storage boxes for tooling and equipment “VTI integrated lance holder box”
  • Side intrusion bars with high visibility reflective tape
  • Starter & battery isolation switches with lock out facility Emergency stops fitted in key position on tray
  • Rotating lights and work lights fitted to truck and spoil tank
  • Interlocks and warning alarms fitted to park brake, spoil tank and boom (if fitted)
  • 20m x 4” polyurethane vacuum hose with fittings of choice
  • 9kg fire extinguisher with mounting bracket and notification decal
  • Easy to clean baghouse and cyclone setup
  • Also available with power pack (CAT 60HP motor)

HYDRAULIC SYSTEM

  • Dual PTOs with piston pumps and Danfos PVG32 proportional control valve
  • 170ltr Oil tank with twin oil coolers
  • All cylinders fitted with over centre valves

4″ BOOM ASSEMBLY

  • Full hydraulic remote controlled boom with 2 x Lodar remotes
  • 4” boom suction hose
  • Plug in boom pendant control for override of boom functions
