HYDRO VACUUM

EXCAVATION TRUCK

CASSETTE JETTER COMBO UNITS

AUSTRALIAN OWNED AND MANUFACTURED

CASSETTE HYDRO EXCAVATION TRUCK JETTER COMBO TRUCK

Experience unmatched performance with our high-spec hydro excavation unit, engineered for the toughest jobs. Featuring an 8000L AS1210 spoil tank with a 10mm-thick construction, protective inlet/outlet bar, discharge chute, and Jurop-style locking system, this unit ensures safety, durability, and easy operation. The 5000L baffled water system, including dual 2000L saddle tanks and a 1000L internal tank, provides reliable water supply with clear sight indicators and stainless fill system.

Powered by a Jurop Helix 750 blower delivering 2500cfm at 28”Hg, and a 267L/min UDOR jetter system at 2250psi, this setup offers serious suction and cutting power. Hydraulic performance is second to none with OMSI split shaft, Danfos valves, and twin oil coolers. The fully remote-controlled cassette features a 180 degree rotating boom, LED work lights, and plug-in override control for precision and efficiency.

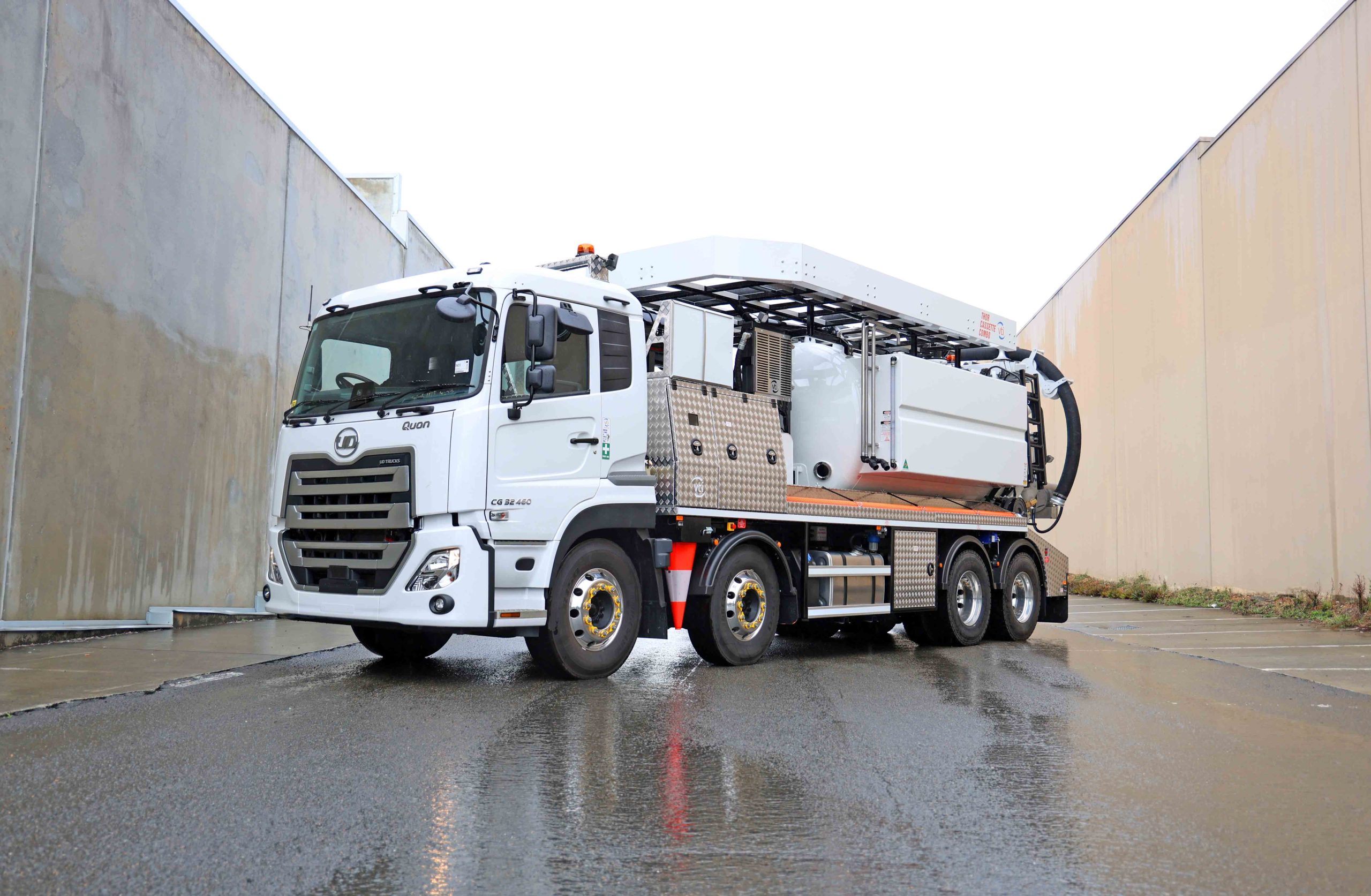

Enjoy the flexibility to build on your preferred chassis, with options across a range of reputable brands including Isuzu, Hino, UD Trucks, Scania, Fuso, Mercedes, Sitrak, MAN, and Iveco—ensuring your setup meets both performance and fleet compatibility standards.

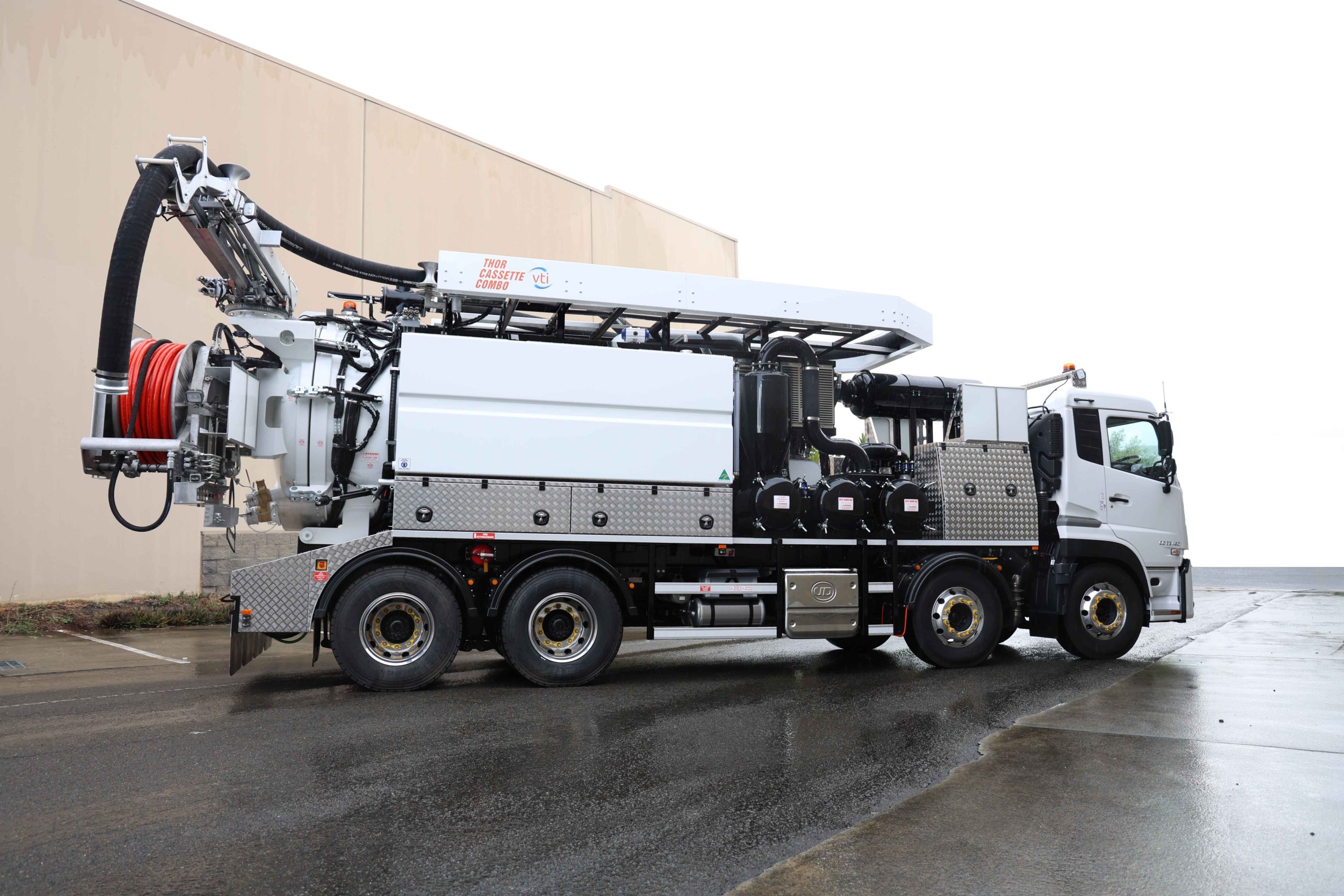

Cassette Hydro Vacuum Excavation Jetter Combo Truck

Technical Specifications

Spoil Tank

8000L Spoil tank capacity (featured in photo) – 1700mm Diameter
Spoil tank AS1210 – designed and built – 10mm thickness
Spoil tank door inlet/outlet valve protection bar
Spoil tank door sampling tap
Spoil tank painted white
Jurop style locking system for spoil tank door
Spoil tank door – 6” inlet (suction) and 6” outlet (drain) both with BSP brass gate valves
Spoil tank discharge chute

WATER TANK

5000L capacity – 2000L each side saddle water tank (4000L combined). Front spoil tank – 1000L internal water tank with manway access
Water tanks baffled
2’ stainless steel water fill system with isolation taps
Water level sight indicators on both tanks

BLOWER OPTIONS

Hercules series – Jurop PVT 400, high mercury, air inducted – 1500cfm (28′ Hg)
Thor series – Jurop Helix 750, high mercury, air injected – 2500cfm (28′ Hg)
Vacuum only – no 4-way valve to change to pressure
Butterfly travel and relief valves fitted for safety and compliance
Day (high) and night (low) option for blower operation

WATER SYSTEM

Comet TW8036 water pump – 32l/m at 3600psi
Water pump hydraulic driven
2” Banjo ‘Y’ strainer filter
Heavy duty hose reels complete with 25m 3/8 high pressure water hose with quick release fitting.
Lances – 1500mm, 2100mm and flexi
PA 0.80 nozzles on lances

6 CASSETTE / BOOM / REEL ASSEMBLY

Full hydraulic swivelling jetter reel complete with syncronised extendable cassette assembly.
6” Cassette boom suction hose.
Swivelling jetter hose reel – 1” hose, 150m length hose
Full remote control operation
180-degree slew capability with integrated slew stops
2 x LED work lights mounted at the front of the boom
Plug in boom pendant control for override of cassette assembly / jetter operation.

ELECTRICAL

2 x 16 button radio remotes with system emergency shut down functionality.
All vac unit operations can be controlled with the radio remote control.
IFM Control System.
Emergency stops fitted in key position on tray
Rotating light and work lights fitted to spoil tank at the rear
LED taillights and reverse squawker
Quality Deutsch plugs utilised for all electrical wiring connections

HYDRAULIC SYSTEM

OMSI split shaft assembly with hydrostatic pump (optional)
PTO with piston pump
Danfoss PVG32 proportional control valve
170ltr Oil tank with twin oil coolers
All cylinders fitted with over centre valves

267 L/M JETTER

UDOR – 267L/m (2250 psi) pump with pressure relief and safety valves
Jurop hydraulic swivelling jetter hose reel – 1” hose, 150m length hose – mounted on rear door
Additional ½” Jetter Reel mounted behind rear bumper
Remote operation – Water – on/off; Hose Spool – in/out

GENERAL

2 x washable filter baghouse accessible from the ground
Stainless steel baghouse and cyclone assemblies
9kg fire extinguisher with mounting bracket and notification decal
20m x 4” polyurethane vacuum hose with Travis fittings
Access ladder for access to boom turret and harness attachment points.
Operational and maintenance manuals and risk assessment supplied
All fabricated components sandblasted (Class 2.5 finish), primed (Epoxy 2 pack) and Painted (Polyurethane 2 pack). Inside water tanks coated (Epoxy 2 pack)
