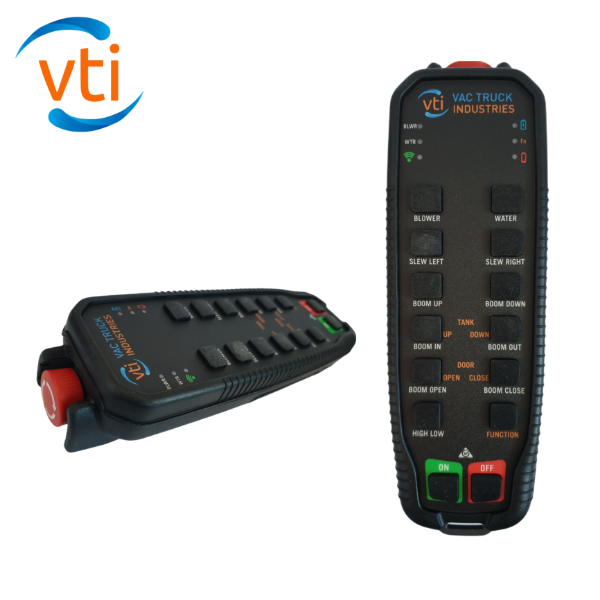

Scanreco VTI Rocket Flex Transmitter

The Scanreco Rocket Flex offers a multitude of digital control functions as well as operator feedback. The transmitter has 14 pushbuttons in either one or two-steps.

The G5 Rocket Flex Transmitter is a lightweight, impact and water-resistant handheld unit equipped with up to fourteen ON/OFF function push buttons. The push buttons can have a two-step function. It has five configurable Light-Emitting Diodes (LED) for machine and status feedback as well as a charge indication LED. The buttons and the LED’s can be configured for a variety of different operations. The unit is powered with three re-chargeable AA batteries, which is included separately in the delivery. The associated battery charger is recommended to be used with the unit. The backside has a belt clip for convenient attachment on the operator’s belt.

• 14 one or two-step pushbuttons
• Feedback to 5 light emitting diodes
• Stop function in accordance with EN ISO 13849-1 cat. 3, PL d
• Supply: 3xAA re-chargeable batteries
• Operational time: ≤ 120 hours without display, ≤ 40 hours with display
• External holder and battery charger
• Frequency band: 2.4 GHz
• Operating range > 100m / > ~330 ft.
• Operational temperature: -25°C to +55°C / ~ -15°F to + 130°F
• Protection category: IP65
• Dimensions: (WxHxD): 69x213x48 mm / ~2.7×8.4×1.9 in
• Weight: 400 g / ~0.88 lbs. including batteries
