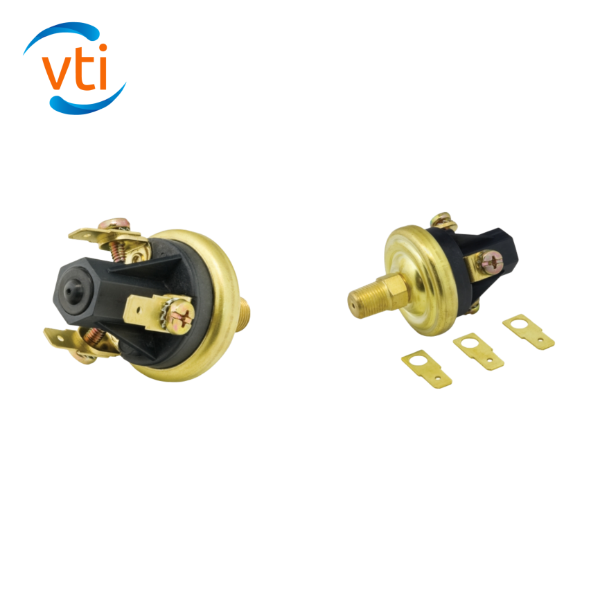

IONNIC Pressure Switch

SKU: PRESSSWITCH3 Category:

$45.00

  • Compatible with a wide range of substances, including air, motor oils, transmission oils, fuels and other similar petroleum based liquids and gases.
  • Single pole change over.
  • Robust, compact design suitable for harsh environments.
  • Tolerates high pressure spikes.
  • Supplied with 6.3mm blade terminals.
  • Voltage: 6-24V
  • Circuitry: SPCO
  • Proof Pressure: 500 PSI
  • Current Rating: 8A @ 12V
  • Terminals: #8-32 screws & 6.3mm blade
  • Connection: 1/8 – 27 NPT Male
  • Base: Brass
  • Body: Glass reinforced polyester
  • Diaphragm: Polyimide film
  • Switch Contacts: Silver Alloy Gold Plated
  • Operating Temp: -40°C to 120°C
  • Approvals: CE, UL
  • Note: 4-60 PSI Models
