HYDRO VACUUM

EXCAVATION TRUCK

CASSETTE COMBO UNITS

AUSTRALIAN OWNED AND MANUFACTURED

8000L – JETTER COMBO HYDRO EXCAVATION TRUCK

The 8000L Jetter Combo Unit is engineered to outlast and outperform in the harshest environments—meeting the demanding operational needs of the construction, civil, electrical, infrastructure, mining, drilling, oil, and gas sectors. Designed for maximum productivity, this unit reduces downtime by allowing for more time on-site and fewer trips to waste disposal, ultimately delivering faster results, shorter lead times, and a higher return on investment for your business.

At its core is a robust 8000L AS1210 Class “B” spoil tank, built from 10mm steel and fitted with BSP brass gate valves, a Jurop-style locking system, and a protective discharge chute. A 4000L baffled water tank system feeds a hydraulic-driven Comet TW8036 pump, delivering 32L/min at 3600psi through heavy-duty hose reels and multiple lance options.

The integrated UDOR 267L/min jetter system enables powerful drain and pipe clearing, while the Jurop Helix 750 blower ensures efficient high-volume vacuum extraction of debris, roots, and obstructions.

Featuring a 270° hydraulic boom, full remote-control operation, and a rugged IFM control system, this combo unit is not just a truck—it’s a high-performance, field-ready solution designed to elevate on-site capability and efficiency.

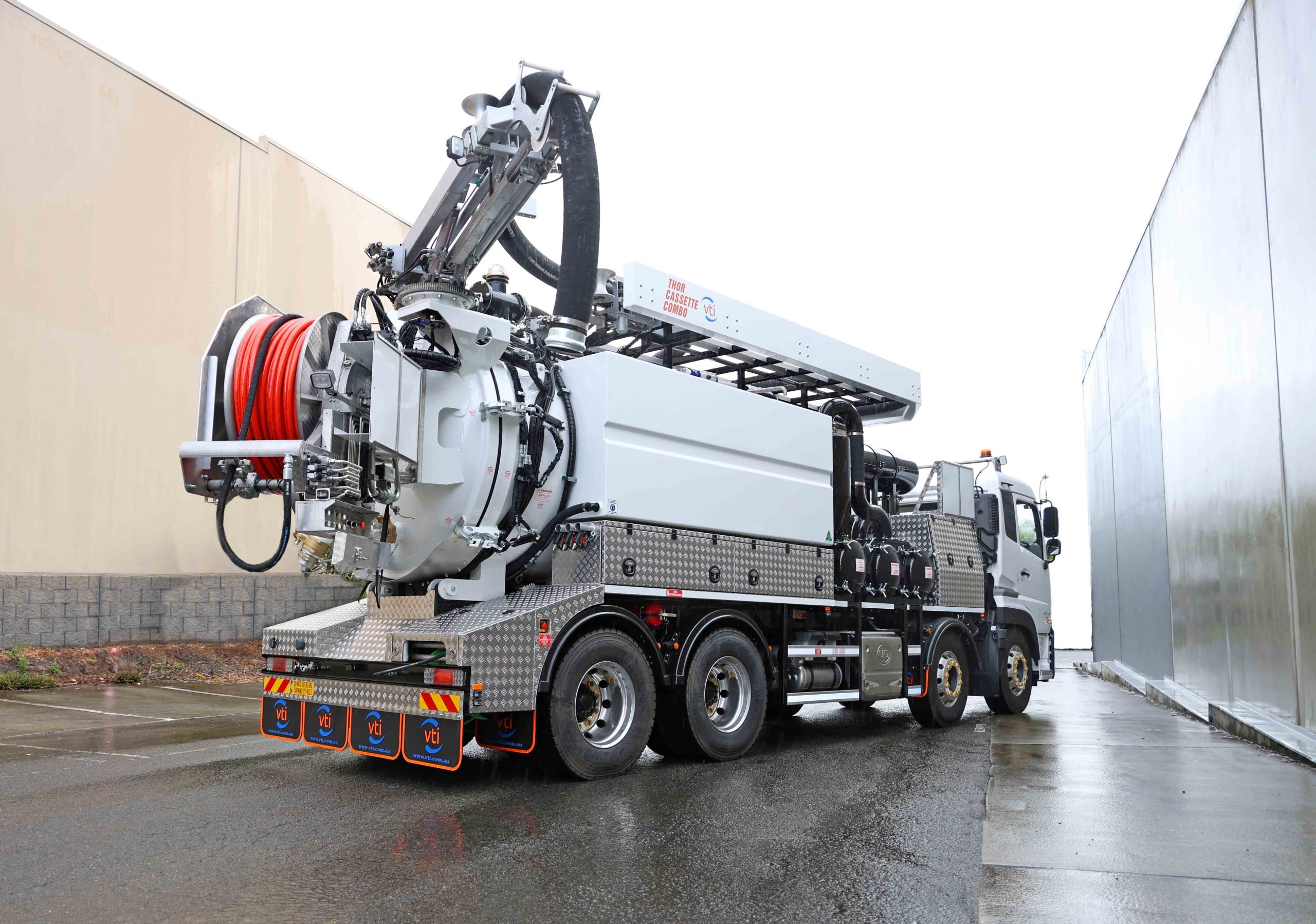

8000L Hydro Vacuum Excavation Jetter Combo Truck

Technical Specifications

Spoil Tank

8000L Spoil tank capacity – 1700mm Diameter
Spoil tank AS1210 – Class “B” designed and built – 10mm thickness
Spoil tank door inlet/outlet valve protection bar
Spoil tank door sampling tap
Spoil tank painted white
Jurop style locking system for spoil tank door
Spoil tank door – 6” inlet (suction) and 6” outlet (drain) both with BSP brass gate valves
Spoil tank discharge chute

WATER TANK

4000L capacity – water tanks combined
Water tanks baffled
2’ stainless steel water fill system with isolation taps
Water level sight indicators on both tanks

BLOWER OPTIONS

Hercules series – Jurop PVT 400, high mercury, air inducted – 1500cfm (28′ Hg)
Thor series – Jurop Helix 750, high mercury, air injected – 2500cfm (28′ Hg)
Goliath series – Jurop Helix 1200, high mercury, air injected – 3770cfm (28′ Hg)
Vacuum only – no 4-way valve to change to pressure
Butterfly travel and relief valves fitted for safety and compliance
Day (high) and night (low) option for blower operation

WATER SYSTEM

Comet TW8036 water pump – 32l/m at 3600psi
Water pump hydraulic driven
2” Banjo ‘Y’ strainer filter
Heavy duty hose reels complete with 25m 3/8 high pressure water hose with quick release fitting.
Lances – 1500mm, 2100mm and flexi
PA 0.80 nozzles on lances

6″ OR 8″ BOOM ASSEMBLY

Full hydraulic remote-controlled boom with 2 x lodar remotes
6” or 8″ boom suction hose option
Plugin boom pendant control for an override of boom functions
2 x LED work lights mounted at the front of the boom

ELECTRICAL

2 x 16 button radio remotes with system emergency shut down functionality.
All vac unit operations can be controlled with the radio remote control.
IFM Control System.
Emergency stops fitted in key position on tray
Rotating light and work lights fitted to spoil tank at the rear
LED taillights and reverse squawker
Quality Deutsch plugs utilised for all electrical wiring connections

HYDRAULIC SYSTEM

PTO with piston pump and Omsi split shaft assembly (Thor series)
Danfos PVG32 proportional control valve
170ltr oil tank with twin oilcoolers
All cylinders fitted with over centre valve

GENERAL

VTI full-length passenger side aluminum hose tray storage – with tie-down points and straps for load containment
Unique VTI driver side storage box for tooling and equipment with integrated 3 lance holder box
Side intrusion bars with high visibility reflective tape
Starter and battery isolation switches with lockout facility
Emergency stops fitted in a key position on the tray
LED rotating lights and work lights fitted to the truck and spoil tank
Interlocks and warning alarms fitted to park brake, spoil tank, and boom
20m x 4” polyurethane vacuum hose with fittings of choice
9kg fire extinguisher with mounting bracket and notification decal
Full mine site compliant safety decals
Easy to clean baghouse and cyclone setup, accessible from the ground
Angled base on cyclone and baghouse for easy washout
